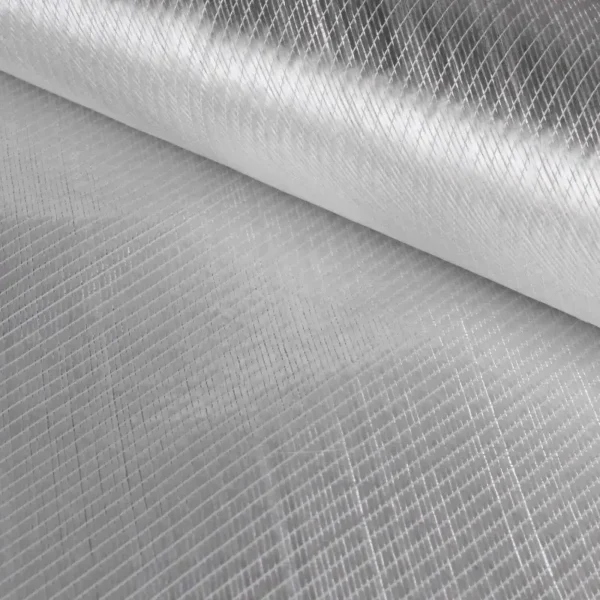

Fiberglass Multiaxial Fabric is a high-performance reinforcement material made bystitching together layers of fiberglass oriented in different directions (e.g., 0°, 90°, ±45°).This structure provides superior strength, stiffness, and dimensional stability in multipledirections while minimizing resin consumption. it is widely used in wind turbine blades.marine structures, automotive parts, sports equipment, and aerospace componentsoffering excellent mechanical properties, fatigue resistance, and lightweightperformance.

Fiberglass Multiaxial Fabric & Combo Mat

Fiberglass Multiaxial Fabric is a high-performance reinforcement material made bystitching together layers of fiberglass oriented in different directions (e.g., 0°, 90°, ±45°).This structure provides superior strength, stiffness, and dimensional stability in multipledirections while minimizing resin consumption. it is widely used in wind turbine blades.marine structures, automotive parts, sports equipment, and aerospace componentsoffering excellent mechanical properties, fatigue resistance, and lightweightperformance.

Category:

Typical Fabric List

Model Code Weave 0°   90°   +45° -45° CSM
LAYER		 TOTAL AREA
WEIGHT
   (g/m²) (g/m²) (g/m²) (g/m²) (g/m²) (g/m)
SYFBX300 Biaxial 150   150 / / / 300
SYFBX300 Biaxial   /    / 150 150 / 300
SYFBX400 Biaxial 200 200 / / / 400
SYFBX400 Biaxial / / 200 200 / 400
SYFBX500 Biaxial 250 250 / / / 500
SYFBX500 Biaxial / / 250 250 / 500
SYFBX525 Biaxial 150 150 / / 225 525
SYFBX625 Biaxial / / 200 200 225 625
SYFBX600 Biaxial 300 300 / / / 600
SYFBX600 Biaxial / / 300 300 / 600
SYFBX800 Biaxial 400 400 / / / 800
SYFBX800 Biaxial / / 400 400 / 800
SYFBX1025 Biaxial 400 400 / / 225 1025
SYFBX1025 Biaxial / / 400 400 225 1025
SYFBX1200 Biaxial 600 600 / / / 1200
SYFBX1200 Biaxial / / 600 600 / 1200
SYFTX450 Triaxial 150 / 150 150 / 450
SYFTX500 Triaxial 200 / 150 150 / 500
SYFTX600 Triaxial 200 / 200 200 / 600
SYFTX725 Triaxial 200 / 150 150 225 725
SYFTX900 Triaxial 300 / 300 300 A 900
SYFTX1000 Triaxial 400 / 300 300 / 1000
SYFTX1000 Triaxial / 400 300 300 / 1000
SYFTX1225 Triaxial 400 / 300 300 225 1225
SYFTX1400 Triaxial 600 / 400 400 / 1400
SYFTX1400 Triaxial / 600 400 400 / 1400
SYFQX600 Quadraxial 150 150 150 150 / 600
SYFQX700 Quadraxial 200 200 150 150 / 700
SYFQX800 Quadraxial 200 200 200 200 / 800
SYFQX825 Quadraxial 150 150 150 150 225 825
SYFQX925 Quadraxial 200 200 150 150 225 925
SYFQX1200 Quadraxial 300 300 300 300 / 1200
SYFQX1400 Quadraxial 400 400 300 300 / 1400
SYFQX1425 Quadraxial 300 300 300 300 225 1425
SYFQX1625 Quadraxial 400 400 300 300 225 1625
SYFQX2000 Quadraxial 600 600 400 400 / 2000
SYFQX2300 Quadraxial 600 600 400 400 300 2300
