Electrical Fiberglass Fabric is a specialized woven material made from high-qualityglass fibers, designed for electrical insulation and mechanical reinforcement. It offersexcellent dielectric strength,high temperature resistance, and dimensional stability,making it widely used in transformers, motors, generators, printed circuit boards,and other electrical equipment.With its superior resistance to heat, moisture, andchemicals, electrical fiberglass fabric ensures long-term reliability and safety indemanding electrical and electronic applications.

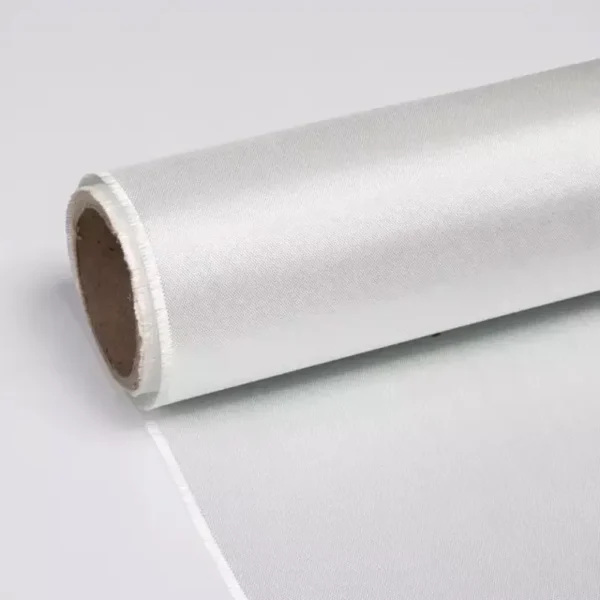

Electrical Fiberglass Fabric

Electrical Fiberglass Fabric is a specialized woven material made from high-qualityglass fibers, designed for electrical insulation and mechanical reinforcement. It offersexcellent dielectric strength,high temperature resistance, and dimensional stability,making it widely used in transformers, motors, generators, printed circuit boards,and other electrical equipment.With its superior resistance to heat, moisture, andchemicals, electrical fiberglass fabric ensures long-term reliability and safety indemanding electrical and electronic applications.

Category:

Typical Fabric List

Model Code Weave Yarn Type Thread Count(10mm) Area Weight
(g/m2)		 Thickness
(mm)
Warp Weft Warp Weft
1000 Plain BC3000 BC3000 33 33 11 0.012
1017 Plain BC3000 BC3000 37 37 12.5 0.016
101 Plain D1800 D1800 30 30 16.5 0.024
1015 Plain BC2250 BC2250 38 38 16.5 0.015
1027 Plain BC1500 BC1500 30 30 19.5 0.02
1037 Plain C1200 C1200 28 28 23 0.027
106 Plain D900 D900 22 22 24.5 0.029
1035 Plain D900 D900 26 26 30 0.028
1067 Plain D900 D900 28 27 30 0.032
1078 Plain D450 D450 21 21 47.5 0.045
1080 Plain D450 D450 24 19 48 0.047
1086 Plain D450 D450 24 24 52.5 0.05
2112 Plain E225 E225 16 16 70 0.07
2113 Plain E225 D450 24 22 79 0.07
3313 Plain DE300 DE300 24 24 81 0.07
2313 Plain E225 D450 24 24 81 0.07
2116 Plain E225 E225 24 23 104.5 0.09
2165 Plain E225 G150 24 20 123 0.1
1652 Plain G150 G150 20 20 136 0.114
1504 Plain DE150 DE150 24 19 148 0.125
1500 Plain E110 E110 19 17 164 0.149
1506 Plain E110 E110 19 18 165 0.14
7628L Plain G75 G76 17 13 203 0.165
7628M Plain G75 G75 17 13 210 0.17
7630 Plain G67 G68 17 13 220 0.175
7667 Plain G67 G67 17 14 234 0.19
7638 Plain G75 G37 17 10 255 0.24
