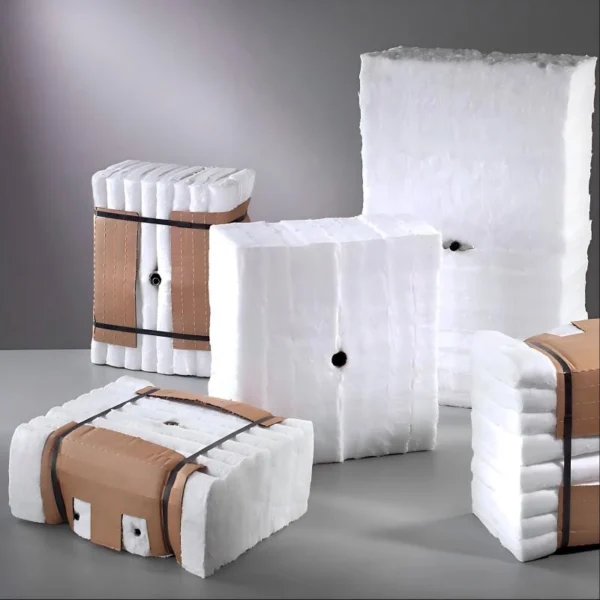

Ceramic fiber module is a pre-engineered, fold-compressed insulation unit designedfor rapid furnace lining installation, including industrial kilns, heat treatment furnaces,petrochemical cracking furnaces, and boiler systems. The accordion-folded designwith integrated anchoring system enables 50% faster installation compared totraditional refractory while offering superior thermal insulation, 30% energy savings,and excellent resistance to thermal shock and chemical corrosion.

Ceramic Fiber Module

Ceramic fiber module is a pre-engineered, fold-compressed insulation unit designedfor rapid furnace lining installation, including industrial kilns, heat treatment furnaces,petrochemical cracking furnaces, and boiler systems. The accordion-folded designwith integrated anchoring system enables 50% faster installation compared totraditional refractory while offering superior thermal insulation, 30% energy savings,and excellent resistance to thermal shock and chemical corrosion.

Category:

Model Code

YS2000PT

YS2000ST

YS2000HP

YS2000HA

YS2000HZ

YS2000PS

Product Grade

Precision
Temperature

Standard
Temperature

High Purity

High Alumina

Zirconia
Enhanced

Polycrystalline
Silica

Max Temp. (C)

1100

1260

1260

1360

1430

1600

Working Temp. (C)

1100

1050

1100

1200

1350

1500

Color

White

Density(kg/m3)

160 to 220

Size(mm)

LxW:300×300,450×300,600×300
H:100,150,200,250,300
